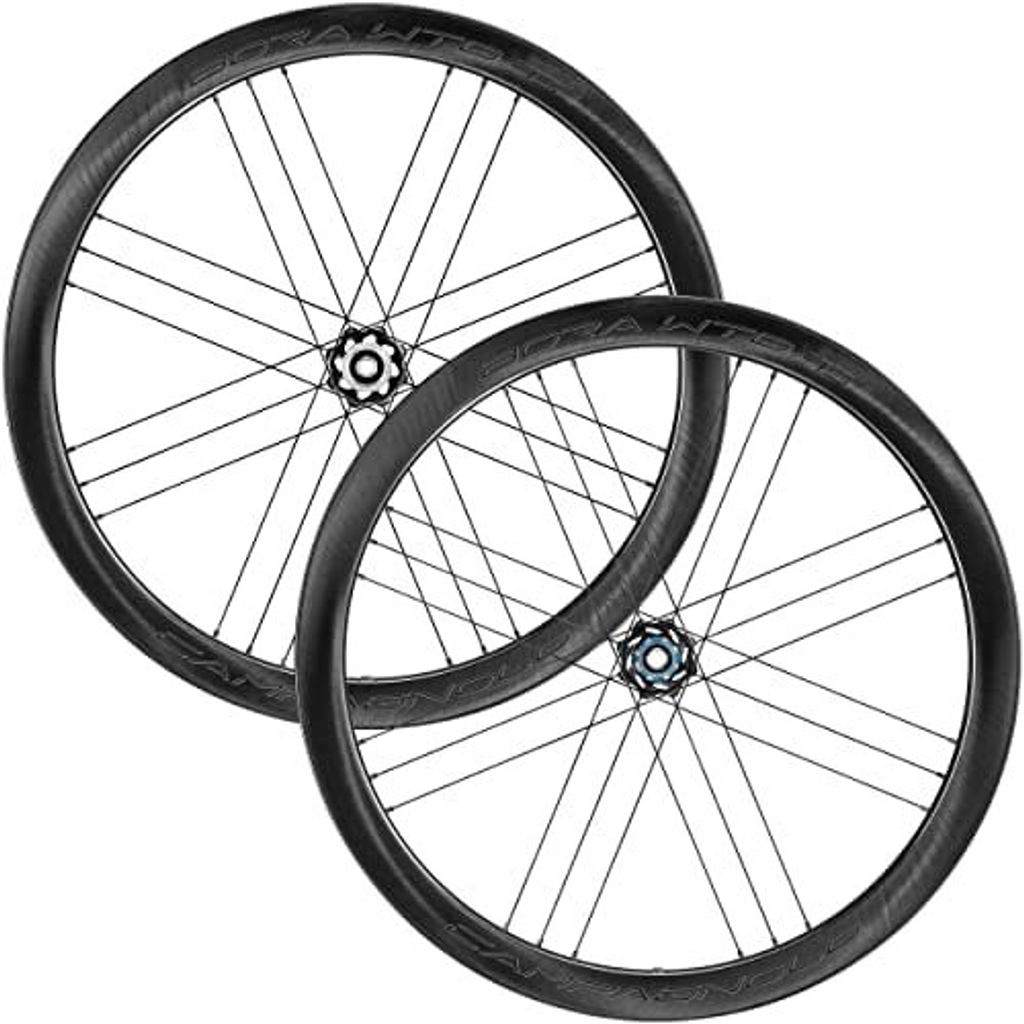

The family of carbon aero wheels is further enhanced with the 45 mm profile, designed to appeal to a broader customer base. The design of the rim enables maximum aerodynamic penetration, and at certain angles, the wind can actually become a valuable ally to the rider. Aerodynamic hubs and ceramic USB cup-and-cone bearing system in the hubs themselves: every design choice has been made with a view to optimising performance.
The 19 mm internal width of the rim enables tyres of 23mm, 25mm and 28mm to be fitted. In addition, with the 2-Way Fit version, Campagnolo offers its tried-and-tested technology with full compatibility with clincher and tubeless tyres. While the key purpose of these wheels is to deliver extreme performance, safety is also guaranteed by the Campagnolo AC3 (All Conditions Carbon Control) technology, which ensures safe, modular braking in all weather conditions. Available versions: bright and dark label, Campagnolo FW or HG11 body
SPECIFICATIONS
SPOKES
24 steel spokes in the front elliptical aero cross section, spaced in groups of three through the G3 system
24 steel spokes in the rear elliptical aero cross section, spaced in groups of three through the G3 system
VERSIONS AND WEIGHTS
Dark Label
Only available for 2-Way Fit: 1520 gr
COMPATIBILITY
Campagnolo sprocket set 10/11/12
Shimano sprocket set / SRAM 10/11
SRAM 12 sprocket set

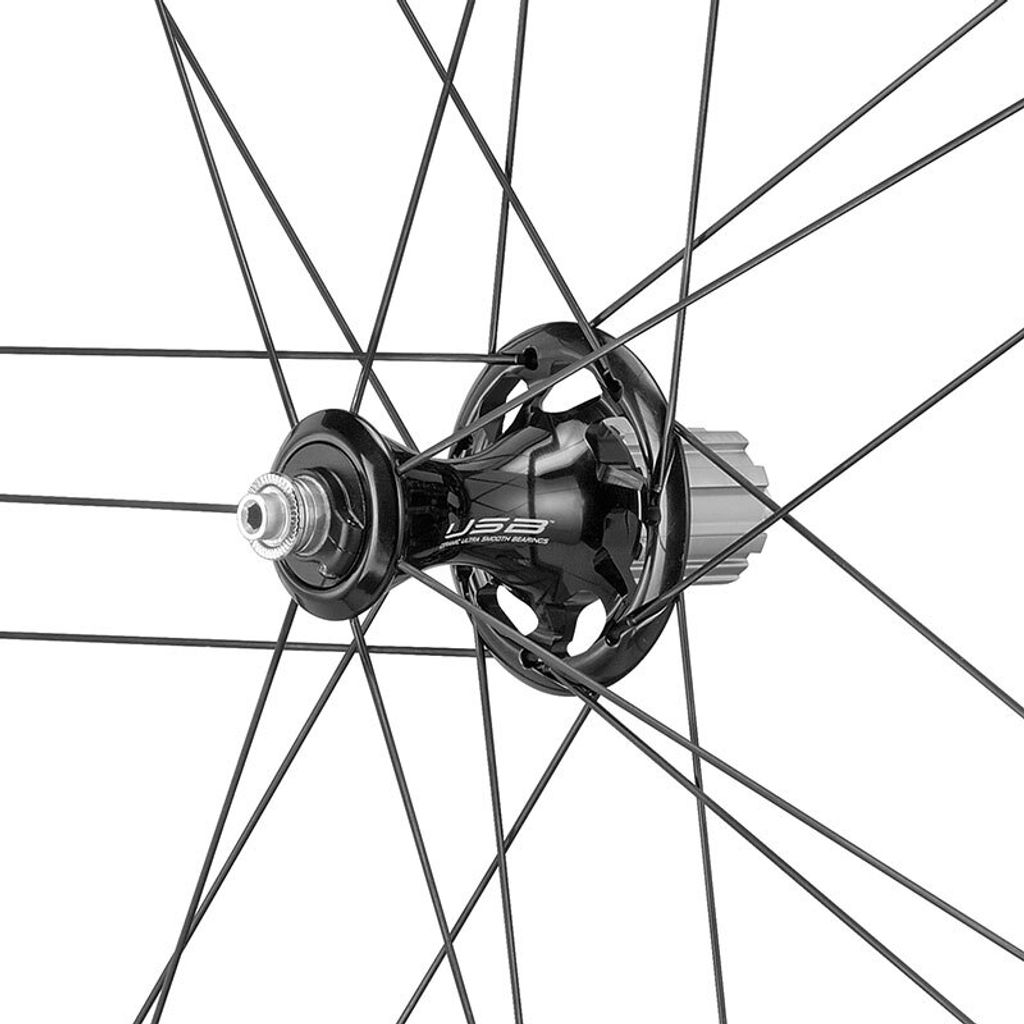

HUB
Black aluminium monolithic hub
USB cup-and-cone bearing system
Hub edge: 100 mm in the front, 142 mm in the rear
Pivot material: aluminium
Cup-and-cone bearing system

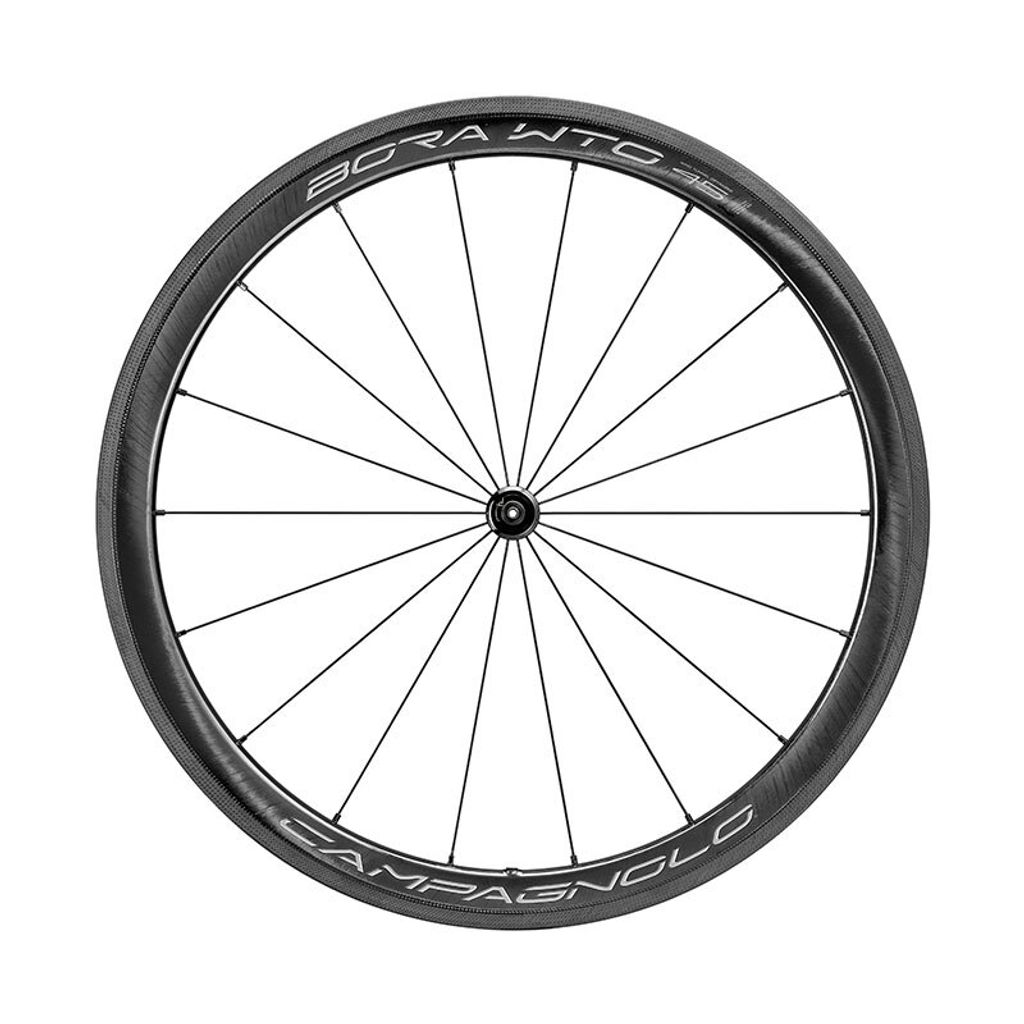

RIM
Profile height: 45 mm
Rim material: carbon
Rim cross section (H x W): 45/26,5 mm
Internal diameter of rim: 19 mm
Water Transfer graphic
TYRES
Clincher tyres
Tubeless tyres
ASSEMBLY
The Bora™ WT0 45 Disc wheel is entirely hand-assembled by a specialised Campagnolo® technician and is checked in every tiny detail with electronic instrumentation. This ensures maximum performance and reliability for all Campagnolo® wheels.
COMES WITH
35 mm tubeless valve
35 mm valve extender
Bushing to reduce the size of the valve hole
2 levers in composite material for tyre removal
User manual
